The Intona Ethernet Debugger is a device to capture packets between two Gigabit Ethernet devices. It provides two ethernet ports, and each port forwards all traffic to the other port, as well as to a PC connected via USB. The intended purpose is low level debugging of anything above the ethernet physical layer, mainly using Wireshark and similar protocol analyzers. It helps when developing your own protocols layered on top of ethernet, developing your own MAC, or just for observing what is going on on your network.
This device can log complete ethernet packets as received by the PHY. There is no processing of captured packets – preamble, SFD, and FCS are all left intact. Packets with incorrect CRC sums are not discarded. Ethernet packets which violate the specification are captured as far it is possible. Some normally invisible low level details are explicitly logged, such as interpacket gaps and CRC errors. Jumbo frames (ethernet packets longer than 1500 bytes) are supported and fully captured up to 16KB size.
Capture output is directly streamed to the PC. There is no kernel device driver. The device is accessed through a libusb userspace driver. You do not necessarily need elevated privileges. Installing the device will not destabilize your system. In particular, the device is not exposed as network device. This has the advantage that your OS will not mess with it. Neither will it attempt to drop or filter packets received through it, nor will it attempt to send random packets to it (ARP etc.). The latter would show up in Wireshark, and confuse your development efforts.
Capture can be directly started from Wireshark (if installed correctly). The userspace driver also provides a command line interface, which can be used to access advanced feature. An IPC interface is provided for use cases like scripting.
There are many other features. See Other features section.
The software works on Windows, Linux, and macOS. We provide an installer for Windows. Windows 10 64 bit is required, but Windows 7 may work as well. For macOS, a homebrew tap is provided. For Linux, source code and build instructions are provided, which should work on any Linux distro.
USB 3.0 or later host and cable are recommended. USB 2.0 may work in low bandwidth scenarios. Using an USB hub, and/or connecting multiple USB devices to an USB hub/host may reduce the maximum bandwidth at which capture is possible without capture overflows.
Ethernet is intercepted by putting two PHYs between the two ports. There is no direct connection between the ethernet TX/RX wires of the ports. Each PHY negotiates the ethernet connection separately. No link can be established without USB power.
Old firmware (before 1.06) requires the user to set the ethernet speed manually if the devices connected to the debugger's ports negotiated different ethernet standards (for example 100 MBit vs. 1 Gb).
The PC needs to be fast to capture at full speed. Capturing in real time with maximum ethernet bandwidth directly to Wireshark or a slow hard disk may not be possible. (This is due to host performance problems outside of our control.) Packet buffer overflows should be expected when operating near maximum bandwidth. There is no hardware packet filter.
The firmware version is reported in the bcdDevice field in the USB device descriptor, or can be determined by using the "hw_info" command in the host tool.
Updating to host tool v1.2 is recommended.
Potential incompatibilities and problems
The host tool's version can be determined with the "hw_info" command, or simply running "nose --version".
Note: you can also look at the public git repository's commit log.
Unreleased, but publicly available. (Also picked up by Homebrew formulae.)
Updating to firmware 1.06 is recommended.
Potential incompatibilities and problems
The ethernet debugger needs to be powered via USB to forward any packets. Without power, communication between the two ports is blocked. Make sure USB cable and host port are at least USB 3.0 compliant. If you use USB hubs or USB isolators, make sure they all support USB 3.0. USB 2.0 will work, but will provide degraded functionality, as USB 2.0 bandwidth is lower than that of Gigabit Ethernet.
Attach the ethernet cables to the ports. Make sure you are breathing regularly. As soon as both port LEDs indicate a connection, and the negotiated ethernet speed matches between both ports, communication is possible.
The LED in use indicates the ethernet speed mode. If packets are sent or received, the corresponding LEDs will blink.
|Speed||LED L||LED R|
Note that it's possible for one port to have a link, while the other port does not. They also can have mismatched speed. In both cases, capture will not work. 10 MBit mode is not supported.
Normally, the main LED should be blue. It will blink if capturing is in progress. The following states exist:
|Blue||USB super speed connection is up|
|Green||USB high speed connection is up (slow, but functional)|
|Cyan||USB power only (will not work)|
|Blue blinking||capturing at USB super speed is in progress|
|Green blinking||capturing at USB high speed is in progress (will drop packets)|
|Blue/green blinking||the blink_led command is being used (only for a short moment)|
|Red||initial bootloader failed (probably flash problem)|
|Red blinking||bootloader failed (probably flash problem)|
|Off||low level bootloader/firmware crash, or no USB power|
|Red/yellow blinking||fatal higher level firmware error|
|Red/blue or Red/green blinking||firmware update failed; running factory firmware version|
When you experience problems, it is useful to describe the LED state exactly in support requests, even if the observed variant is not listed above.
The software consists of a host tool, called "nose". It performs the following roles:
No binaries or packages are provided. You can build it from the public git repository. Binary builds or packages for popular Linux distributions may be provided if there is enough demand.
You may need to install an udev rule to get access to the USB device as normal user:
No binaries are provided. Hence the software is provided as source code, you can automatically download and build it using Homebrew.
Homebrew is a 3rd party project for installing freely available software on macOS. See https://brew.sh/ for details and how to install Homebrew itself.
You need to setup Wireshark extcap manually. See below.
We decided to not provide binaries for macOS because it is quite impossible to deliver unified, stable executables that will work on various releases of both software API and CPU types. Think on the platform change to ARM. This is no issue when compiling from sources using Homebrew.
It does not matter whether the device is connected during installation. In fact, the installer does not try to access the device at all.
You can reinstall any time. Updating Wireshark might remove the Ethernet Debugger Wireshark integration. Reinstalling the Ethernet Debugger will restore it.
A simple way to verify whether the software works is by simply running the host tool. It is a command line program. On Windows, double-clicking
nose.exe will open a terminal window, while on Unix, you need to open a terminal window manually, and then run
nose in it.
If the installation succeeded, and the device is connected, you should see the following:
The example above has the device on USB bus 2, port 3, device address 7.
If the device could not be found or accessed, the following is shown:
You can stop the host tool by closing the terminal or by entering the "exit" command.
Wireshark is the recommended way to use the Ethernet Debugger. It is 3rd party software and not developed by Intona. Download and install it from Wireshark's website: https://www.wireshark.org/download.html
Normally, the Windows installation procedure installs our host tool as a Wireshark "extcap". In short, "extcap" allows external programs (such as our host tool) to provide a capturing source. See the Wireshark extcap section for details. If the host tool is not correctly installed as extcap source, you will not be able to start capture from the Wireshark GUI (but other methods of capturing will still work.)
The host tool supports extcap directly via special command line parameters. It must be located in the "extcap" sub directory within the Wireshark installation directory or the user's Wireshark configuration directory. The paths depend on the operating system and the Wireshark installation location.
You can confirm whether it's installed correctly by opening the Wireshark about dialog, and switching to the "Plugins" tab. There should be an entry named "nose".
Old Wireshark versions
The non-global/user-specific extcap paths below require at least Wireshark 3.1.1. Older releases support global paths only.
It is recommended to create a symlink to the host tool. The global path is something like /usr/lib/wireshark/extcap/ or /usr/lib/x86_64-linux-gnu/wireshark/extcap/. The exact path depends on the Linux distro. The user-specific path is usually
The following should install it locally, assuming "nose" is already installed:
The following is useful if you want to install the extcap globally, or on older Wireshark versions, assuming "nose" is already installed via Homebrew:
/Applications/Wireshark/ part of the path can be different, depending on where exactly Wireshark is installed. Check the Wireshark about dialog ("Folders" tab) if you are unsure.
You need to start Wireshark at least once before you run the above command. Otherwise, macOS may show a security warning, and it won't work.
Since Windows does not support symlinks properly, it is recommended to create a .bat file in the Wireshark extcap sub-directory. The installer creates a file named
intona-ethernet-debugger.bat with the following contents (assuming default paths and English locale):
This "redirects" all invocations to the actual installation location.
The user-specific path is
USERNAME with the actual username. You may need to create the last component of the path. The installer does not try to use this.
Updating Wireshark tends to remove and recreate the Wireshark installation directory. This will also remove the
intona-ethernet-debugger.bat file created by the Ethernet Debugger installer. You could run the installer again to fix this. Manually moving the .bat to the Wireshark user-specific configuration path mentioned above avoids this.
Firmware updates may be required to get new features and to apply bug fixes. Normally they are not necessary. Applying such an update must be done explicitly. The update process rewrites the device's flash memory, and should not be interrupted. Make sure the device is connected via USB 3.0, as the update will take a long time with USB 2.x. Firmware downloads are available here.
Plug in the device, and ensure it's using USB 3.0. Then run the following command on the terminal:
Downloads/firmware.dat is the path to the firmware binary you downloaded.
If the firmware file is accepted, and the device is accessible, something like this will appear:
If you type 4 followed by the enter key, the device 08900037 will be updated. The tool will exit when the update is finished or aborted. On success, the device restarts on its own, and runs the new firmware immediately.
You can confirm successful update by comparing the device version number (
bcdDevice) with the version indicated by the update. If the device comes up and blinks red, retry the update, or if the tool fails again, contact support.
If the --device option is provided, the tool will update the given device without asking for confirmation. --firmware-update-all will update all detected devices without asking for confirmation. In both cases (at least with v1.2) the firmware is written only if it's newer than the firmware on the device, unless --firmware-update-force is provided.
Old host tool versions (before release v1.2) do not ask for a choice, but start the update with the first device found without confirmation. It is recommended to download and install the newest host tool before performing a firmware update.
The same instructions as with Unix apply. You can double-click "firmware-update.bat" in Explorer in the Ethernet Debugger installation folder to avoid constructing a command line. This will use firmware.dat in the same folder. In addition, the installer comes with the latest release of the firmware. Installers for host tool v1.0 (build 53) do not have this yet; download a newer version here.
(The host tool never "phones home", and there is no automatic update over internet.)
The main purpose of the ethernet debugger is to capture packets. The following methods are available.
If you open Wireshark, it should display any plugged in Intona Ethernet Debuggers as
Ethernet Debugger USB (08900037) in the list of capture interfaces. The
08900037 in the brackets is the serial number (as in the USB device descriptor). (Some versions of Wireshark also show the device address in the format used by the host tool.) Double click this entry, and Wireshark should start capturing. The Ethernet Debugger's main LED will start blinking.
There is no hotplug mechanism for Wireshark extcaps. If you connect or disconnect devices while Wireshark is running, you may need to press F5 or restart Wireshark to update the device list of Ethernet Debugger capture devices.
Note that if the bandwidth utilization is high, the internal FIFO may overrun, leading to lost packets. The host tool adds a packet comment to the first packet after a run of dropped packets.
It may also happen that Wireshark freezes if the amount of data is too large, because the GUI requires a large amount of resources to deal with packet input. (Capturing to disk via the "nose" tool may help reducing packet drop. You can open the capture file with Wireshark afterwards.)
Various error conditions may deadlock Wireshark and the host tool on capture start.
Wireshark lets you set some Ethernet Debugger specific options before starting capture. Click on the gear-like symbol left of the Ethernet Debugger interface in Wireshark's Capture interface list.
The host tool provides a toolbar in Wireshark. This is implemented through the extcap mechanism. It is slightly clunky due to Wireshark restrictions (all GUI code is provided by Wireshark, and not everything can be realized). The toolbar can be shown by enabling it in the Wireshark "View" menu, "Interface Toolbars" sub-menu.
You may use the
--wireshark option of the host tool to start Wireshark and capturing in one go. It attempts to find the installation path of Wireshark, sets up a named FIFO, and starts a new Wireshark process.
Lifetime of Wireshark process on Unix
Since host tool version v1.2, Wireshark is not terminated anymore if capturing ends or
nose is exited. Older versions always terminated it due to being in the same process session.
The host tool
--capture-stats option can be used to enable regular statistic updates on the terminal. The "set capture-stats true" command can be used to do this at runtime. (You can enter this command on the Wireshark extcap toolbar, for example.)
The host tool
--fifo option can be used to capture either to a real file on disk, or a named FIFO. The
capture_start command is similar, and can be used to start capturing via the host tool command line or IPC interface. The format of the output is PcapNG (see https://pcapng.github.io/pcapng/). You may use the third party open source libpcap library to parse such files. If you use an actual FIFO, you can stream in real time.
Note that if you capture to disk, overruns can happen due to waiting on disk I/O. The host tool tries to avoid this by using decoupled memory buffers, but these may be slowly filled up, until a software overrun happens.
If you have multiple Ethernet Debuggers, the
--device option can be used to pick a specific device. Passing the special value
help to this option lists all devices that were found.
Selecting multiple devices at once is not possible. However, if extcap is correctly installed, you can select multiple capture devices in Wireshark. This will provide a merged view of data coming from multiple devices and host tool instances.
--capture-usb-buffer can be used to fine-tune the sizes of the fixed size buffers allocated on the host. Raising them may reduce buffer overruns on the host PC.
Both ethernet ports are capable of handling Power over Ethernet (PoE) as specified in IEEE 802.3af, 802.3at and 802.3bt. Power is passed through in both directions without interception.
The device provides high resolution timestamps for packets. This can help to debug PTP related issues, or any other timing issues. These timestamps are in nanoseconds with 10 ns resolution.
Each PHY has its own FIFO, which may affect accuracy. In addition, device-internal CDC may affect the accuracy. Internally, the timestamps are generated by a 100 MHz clock and are passed to the ethernet PHY's (RGMII) clock domain, which introduces jitter. The timestamps are relative to device start.
The host tool capture output adds a start offset to the timestamps to make them roughly line up with wall clock times. However, this offset is not precise, and there is no time correction. The absolute time of a packet event might be slightly different from real time. The longer the capture is running, the higher the deviation will be.
IN3083WP has additional information.
You can list supported options as follows:
Current list of options:
|--verbosity 0|1|2||Set verbosity log level: 0 silent, 1 normal/default, 2 verbose messages|
|--version||Print host software version and exit|
|--selftest||Run internal self-test. (Requires a loop between the two ports.)|
|--wireshark||Start wireshark and dump packets to it. Terminate once done.|
|--device name||Open this device. (Pass "help" to get a list. "none" prevents automatic opening of a device.)|
|--firmware-update file||Perform a firmware update using this file.|
|--firmware-update-all||Update firmware of all devices that have been found. (Since v1.2.)|
|--firmware-update-force||Update firmware even for devices which have the current or newer firmware version. (Since v1.2.)|
|--fifo file||Start capture and write to the given file or fifo. (Overwrites the target if it's a file.)|
|--ipc-connect path||Connect IPC to this socket/named pipe. Terminate on disconnect.|
|--ipc-server name||Host IPC on this socket/named pipe.|
|--capture-soft-buffer num||Capture soft buffer (in bytes, accepts kib/mib/gib suffix)|
|--capture-usb-buffer num||Capture libusb buffer (in bytes, accepts kib/mib/gib suffix)|
|--capture-stats||Show capture statistics every 1 seconds.|
|--extcap-*||Various options for use by the Wireshark extcap mechanism.|
|--capture||Used by Wireshark; ignored by host tool.|
Strip preamble, SFD, and FCS from ethernet frames.
|--cmd commands||Run commands on opening. (Must be a single string, separate commands with ; )|
The host tool has an interactive command line interface. When starting the host tool without commands, it will wait for commands from the terminal. You can use the "help" command to list available commands and their parameters. Many advanced features (such as listed below) are accessible only through this interface.
By default, the host tool will read from stdin and accept commands. It will terminate if stdin is closed or returns EOF. If run on the terminal, it offers an interactive command line using libreadline. (If the host tool was built without libreadline, or you can use the rlwrap 3rd party tool to get comfortable line editing and history:
|blink_led||Flash main LED|
|block_ports||Block or unblock all packets|
|capture_start||Start capturing to a file or FIFO|
|capture_stop||Stop current capture|
|cfg_packet||Send internal command to device|
|device_close||Close the current device|
|device_list||List all Ethernet Debuggers connected to this PC|
|device_open||Open a device|
|disrupt||Setup packet disruption and port blocking|
|disrupt_stop||Disable packet disruption and port blocking|
|exit||Exit the host tool|
|help||Show all commands|
|hw_info||Show device information (including firmware version etc.)|
|inject||Setup packet injector|
|inject_stop||Disable packet injector|
|mdio_read||Read a PHY's MDIO register|
|mdio_write||Write a PHY's MDIO register|
|reset_device_settings||Restore default settings on the currently opened Ethernet Debugger|
|set||Set a command line parameter|
|set_device_phy_wait||Configure PHY speed negotiation delay time|
|speed||Configure PHY speed negotiation mode|
|latency_tester_sender||Setup device as latency tester sender|
|latency_tester_receiver||Setup device as latency tester receiver|
Some commands are described in further detail in the following sections. The
help command lists parameters accepted by each command.
The command line interface is available via IPC (unix domain sockets on UNIX, named pipes on Windows). This may be helpful for scripting. For example, you could inject or drop packets under specific situations, or start/stop capturing at specific times
--ipc-server command can be used to bring up the server at a specific path while the host command runs.
--ipc-connect can be used to make the host tool initiate the IPC connection, which may be more convenient with certain frameworks.
You can send commands in text or JSON form (the
help command lists available commands and shows the basic syntax). The protocol uses 1 JSON object per line (in both directions of communication). A line is terminated with
\n (ASCII line feed, byte 10). It is fairly self-describing:
id field is an arbitrary integer chosen by the client, and can be used to associate requests with replies. The C-style comments are for illustration, and not part of the protocol.
Log messages (such as output when PHY links change their state) are wrapped into special JSON messages:
blink_led command will flash the device main LED blue/green for a moment. This is helpful to determine which device is opened on a host tool instance if multiple Ethernet Debuggers are connected to a PC.

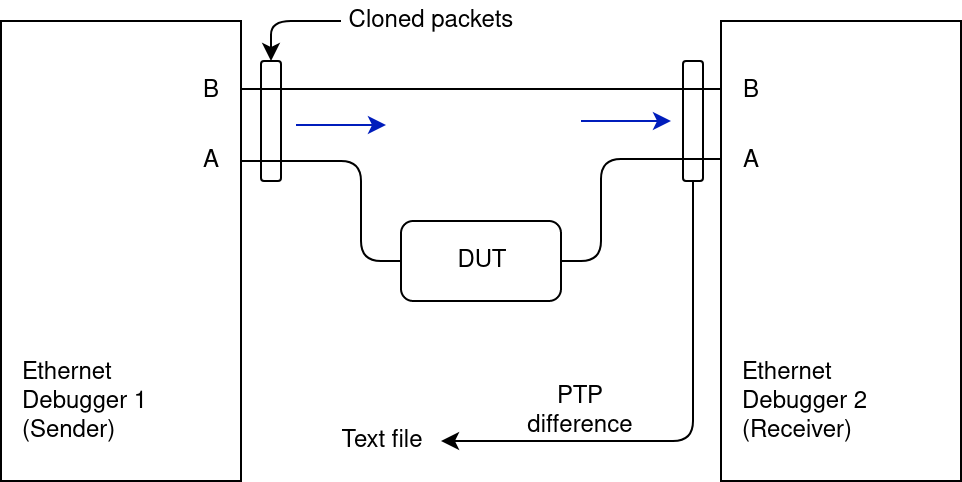

This feature involves sending generated ethernet packets from one Ethernet Debugger to a second one, and measuring the delay. This can be used to test the latency if a 3rd device, using a setup like this:
Ethernet Debugger 1 is the sender, Ethernet Debugger 2 is the receiver. The sender generates packets that get sent out of port A and B at the same time. DUT is expected to propagate the packet unchanged to the receiver. The receiver measures the difference in arrival time between port A and B.
The Latency Tester feature takes care of generating/sending the packets and analyzing them on the receiver side. It writes the computed delay time to a text file. The packets use a (hopefully) unused EtherType (0xBEEF). The feature as currently implemented can test at most Layer 2 devices (like ethernet switches). Testing devices that operate on a higher layer (such as IP routers) are not supported, as that would require implementing parts of ARP and IP (though it's theoretically possible).
Connect the devices as in the diagram above. On the PC, open two "nose" instances, one for the sender, one for the receiver. Use the device_list command to confirm whether the correct device is opened (change it with the device_open command). Then run the latency_tester_sender command on the sender instance, and latency_tester_receiver on the receiver instance. By default the sender starts sending continuously with 1 packet per 1 ms, with a test sequence that lasts 10 seconds. The receiver ignores the packets until a start packet is detected, and then logs the status every 10 packets (it logs the delay for only the 10th packet, use file output to retrieve all data points).
If continuous sending is not desired, you can also just run "latency_tester_sender --once".
The output gives you an idea whether it actually works. Actual data should be retrieved by using file output. File output can be used with for example:
You may want to use an absolute path here (perhaps using drag & drop from a file manager to get the path) if the concept of working directories is too uncomfortable.
The file is opened when a sequence starts, and closed when it ends. If the file already exists when a sequence starts, the file is not overwritten. Instead, the sequence is skipped repeatedly until the file is deleted or moved by the user. Example:
The file mydata.txt was deleted shortly after the receiver was started. The file was then deleted. The host program picked up the next sequence of test packets and wrote them to mydata.txt. The sequences after that are skipped because mydata.txt still exists. (It will log two skip messages per sequence, because it encounters a first packet from both paths.) The idea behind this behavior is that tests can be repeated without much interaction, simply by renaming the output file (maybe giving it a more descriptive name), without the danger of accidentally overwriting files.
The output file simply contains the differences in receive timestamps in nanoseconds, with 10 ns resolution:
These differences should be roughly equivalent to the latency the DUT incurs on ethernet. The values are positive if the latency values on port A are higher than on port b.
See the "PTP Timestamps" section for details on the quality of the timestamps.
By default, 10000 samples are sent (depending on sender configuration), and the receiver reports "Problems detected: no" only if all samples were included. If you see errors logged on the terminal, there is probably some sort of problem due to packet drop or corruption.
It is possible to manually inject new packets into the ethernet connection. As no actual network interface is provided, OS mechanisms (such as sockets) cannot be used. Using the host tool is required.
inject command provides this functionality. It is possible to send arbitrary ethernet packets, including packets that are not spec-compliant. This is not a high speed send path – full ethernet bandwidth cannot be reached. (Although you can instruct the command to repeat packets, in which case it will produce a high bandwidth stream of the same packet being repeated.)
inject_stop to disable the injector again. Use
hw_info to check whether it's currently enabled.
CRC errors can be injected. Degenerate packets (too short, IPG too low) can be created with the "
raw" parameter. Low level physical layer coding errors can be generated with the "
gen-error" parameter (PHY emits symbol error for a specific byte). The IPG can be controlled with the "
gap" parameter, which will set the distance to other generated packets as well as packets that are normally transferred through the wire.
help inject" to list all parameters.
Using the command may drop packets coming from the opposite source port. The injection logic will wait until transmission is turned off, then it will inject the packet, and fully drop any other packets from the opposite port.
help output for advanced parameters that control repeating, raw output (your own preamble), and so on.
block_ports command blocks all traffic through the device in a specific direction:
|Block traffic from B→A, unblock A→B|
|Block traffic from A→B, unblock B→A|
|Block all traffic|
|Unblock all traffic|
This command uses the same hardware logic as the
disrupt command (basically it's just a simpler version of the same command). Using either resets the state set by the other command.
disrupt command can be used to drop or to destroy some or all packets in a certain direction. This is a form of error injection suited for testing reliability of low level protocols. It can either flip a single bit in a packet at a user-chosen byte offset, or discard entire packets.
(Restriction: cannot drop specific packet according to filter-like matching criteria etc.)
disrupt_stop to disable disruption again. Use
hw_info to check whether it's currently enabled.
mdio_write commands provide direct access to the PHY's MDIO registers. Access to register 22 is intercepted/emulated by the firmware.
Ethernet speed is controlled by the PHYs. By default, they are set to use a common speed, and the firmware automatically adjusts the PHYs to use the slowest negotiated speed of either PHY (devices with firmware 1.00 do not support this behavior - you need to set the speed manually).
You can use the
speed command to force specific speed modes on both PHYs:
|1000 MBit||speed 1000|
|100 MBit (full duplex)||speed 100|
|10 MBit (full duplex)||speed 10|
|Highest common speed mode of both PHY||speed same|
|Manual control||speed manual|
same mode puts the PHYs into auto negotiation mode at first, and if the speed modes mismatch, the faster PHY is forced into a lower speed mode. If a link goes down and up again, the process is repeated. Technically, the process can re-establish the link multiple times, which makes it slower and may be annoying when troubleshooting connected devices. The
set_device_phy_wait command can be used to set the fixed time after which the state machine assumes the PHY cannot establish a link.
manual mode lets each PHY negotiate the speed independently, which will lead to problems if the device's port A and B PHYs do not negotiate the same speed.
The values set by the "
speed" and the "
set_device_phy_wait" commands are stored as permanent settings on the device.
Older host tool versions do not have the "same" mode implemented, and require the user to manually correct speed modes. Even older versions do not even offer the "speed" command, and require using manual mdio_write commands. In addition, the "same" mode requires at least version 1.06 firmware.
Since firmware 1.06, the device persistently stores some settings on its EEPROM. You can inspect these settings with the "
fw_info" command. You can clear all persistently stored settings with the "
reset_device_settings" command. Power cycle the device after running the latter command successfully in order to clear any runtime state (PHY registers, inject/disrupt features).
The Ethernet Debugger can be used to intercept and capture traffic between two Ethernet devices. The device is normally not supposed to affect the Ethernet traffic itself. But for technical reasons, the device can affect the traffic by introducing additional latency and jitter compared to a simple Ethernet cable. This effect is minimal, but can matter for real time applications such as PTP. The goal of this document is to provide information about the introduced latency and jitter, as well as actual measurements.
This letter describes volatile, non-volatile, and storage media on the specified product. Customers can use this document to comply with security requirements and equipment handling procedures.
Document version: 87 / Sep 01, 2021 13:54
Download this document as PDF
